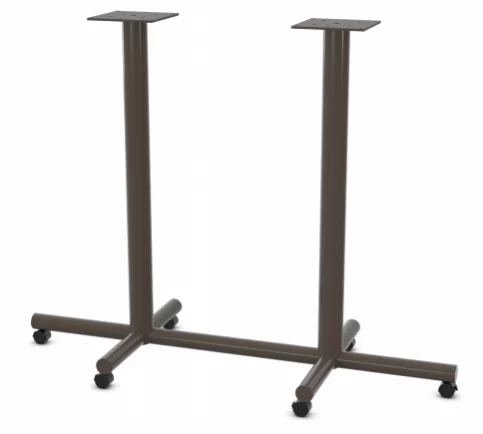

Multi Column X-Base - Black

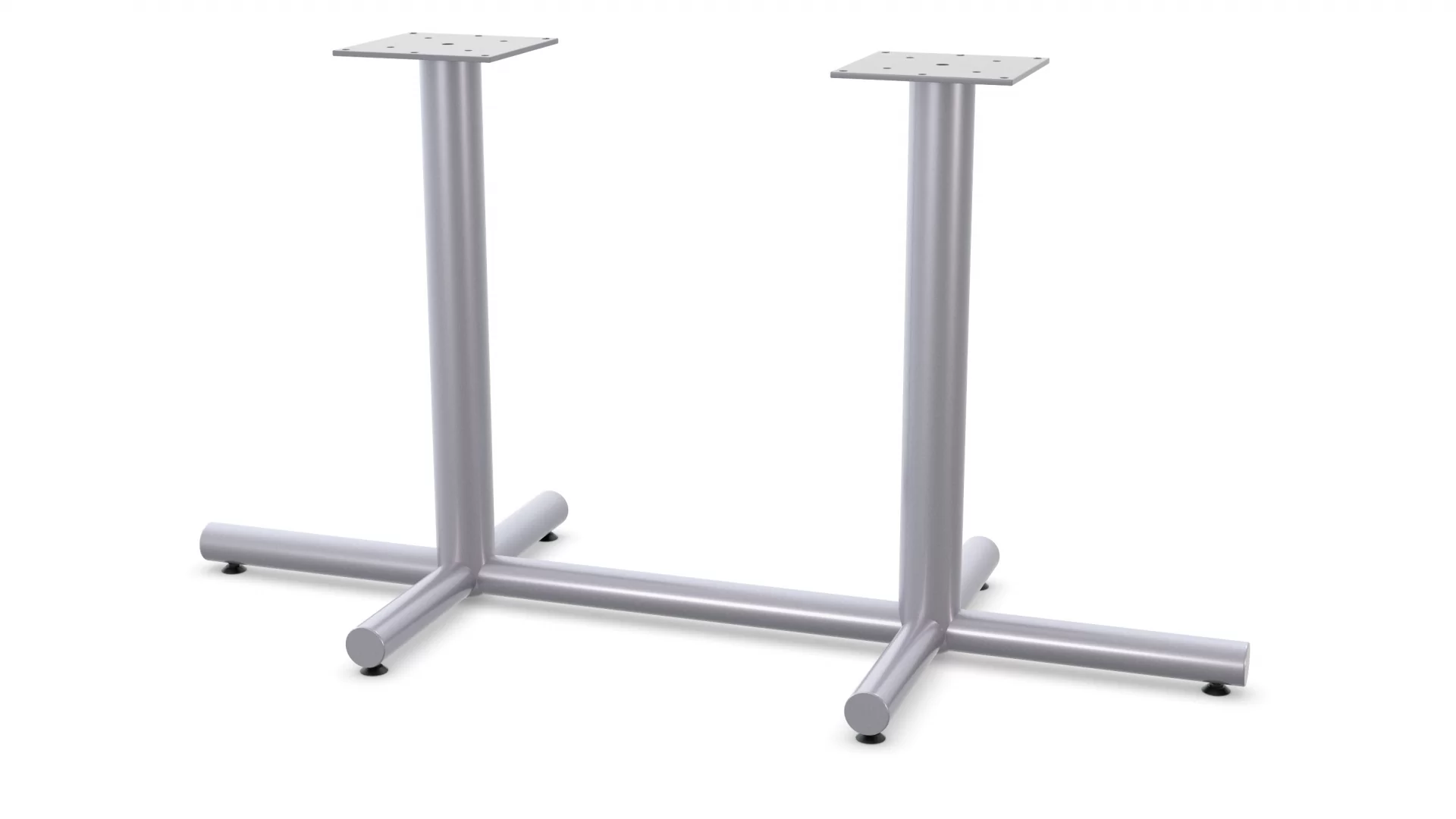

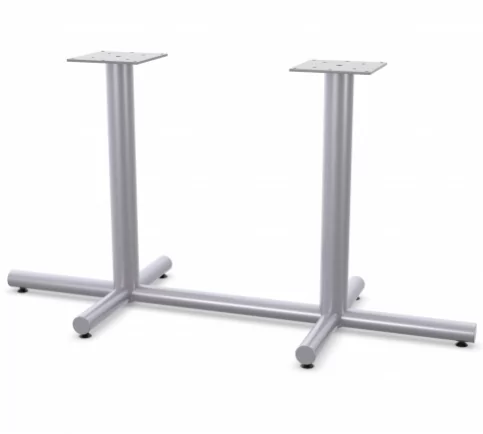

Multi Column X-Base - Metallic Silver
Product Preview
Click & Drag Image (Left or Right)
Multi Column X-Base - Black
Special Offer

Multi Column X-Base

Traditional

Configure Bases

 Configure Tables

Price From:

$576 List

Fabricated 11 gauge steel columns and 14 gauge feet with threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Welded Mounting Plates: 8" x 8" x 7/32" steel
  • Column diameter is 3"; feet are 2" diameter
  • Leveling Glides: 1 3/8" diameter plastic with steel threaded inserts
  • Finish: powder coat colors; Stock color is black
  • Packaging: bases are packaged: 2XL in 2 boxes, 3XL in 3 boxes and 4XL in 4 boxes
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Options Bar height - 40.75"
Column Diameter 3"
Feet Diameter 2"
Welded Mounting Plate 8" x 8" x 7/32" steel; requires #12-14 screws
Base Spread 102" x 36", 102" x 42", 114" x 42", 131" x 42", 53" x 20", 53" x 26", 59" x 20", 59" x 26", 62" x 20", 59" x 26", 68" x 32", 68" x 32", 78" x 36", 90" x 36", 90" x 42"
Leveling Glides 1 3/8" diameter plastic with steel threaded inserts, allows additional 1" upward height adjustment for uneven floors
Finish powder coat colors; black is stock colors
Packaging bases are packaged: 2XL in 2 boxes, 3XL in 3 boxes and 4XL in 4 boxes

Size Chart

Base Spread# of ColumnsMounting PlateRecommended Top Size
53" x 20"28" x 8"24" x 60"
59" x 20"28" x 8"24" x 66"
62" x 20"28" x 8"24" x 72"
53" x 26"28" x 8"30" x 60"
59" x 26"28" x 8"30" x 66"
59" x 26"28" x 8"30" x 72"
68" x 32"28" x 8"36" x 72"
78" x 32"28" x 8"36" x 84"
78" x 36"28" x 8"42" x 84"
90" x 36"38" x 8"42" x 96"
90" x 42"38" x 8"48" x 96"
102" x 42"38" x 8"48" x 108"
114" x 42"38" x 8"48" x 120"
131" x 42"48" x 8"48" x 144"
102" x 36"38" x 8"42" x 108"

.

Resources & Downloads

Assembly Instructions - 3XL
Assembly Instructions - 2XL

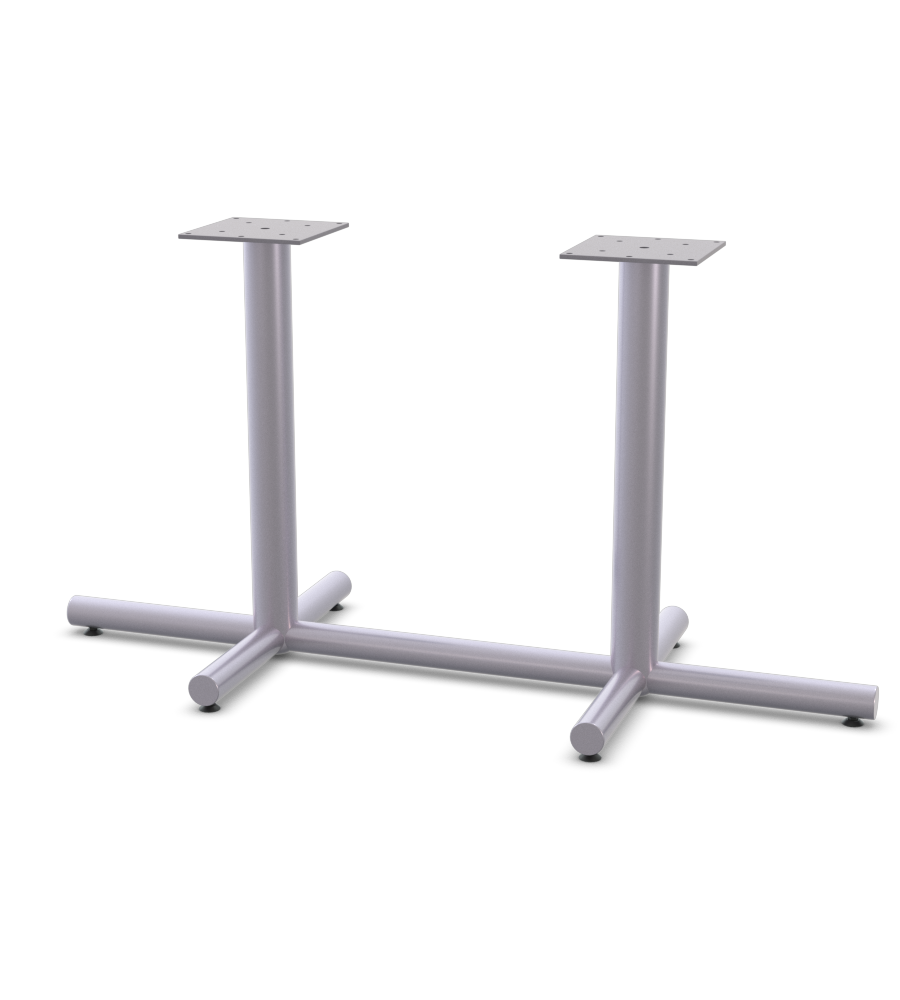

Product Preview
