Single Column C-leg - Black Finish - Glides

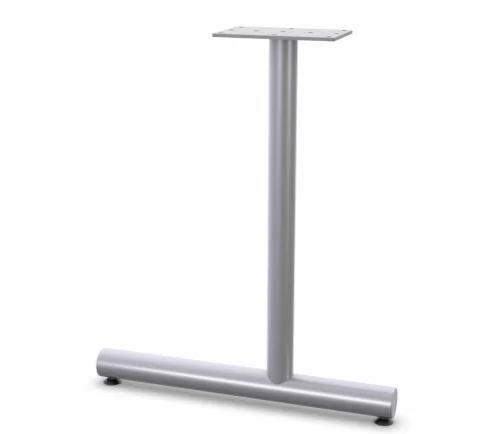

Single Column C-leg - Metallic Silver Finish - Glides

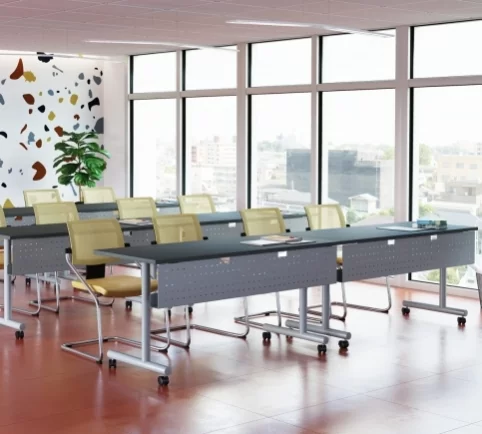

Kingston Table - C Leg
Product Preview
Click & Drag Image (Left or Right)

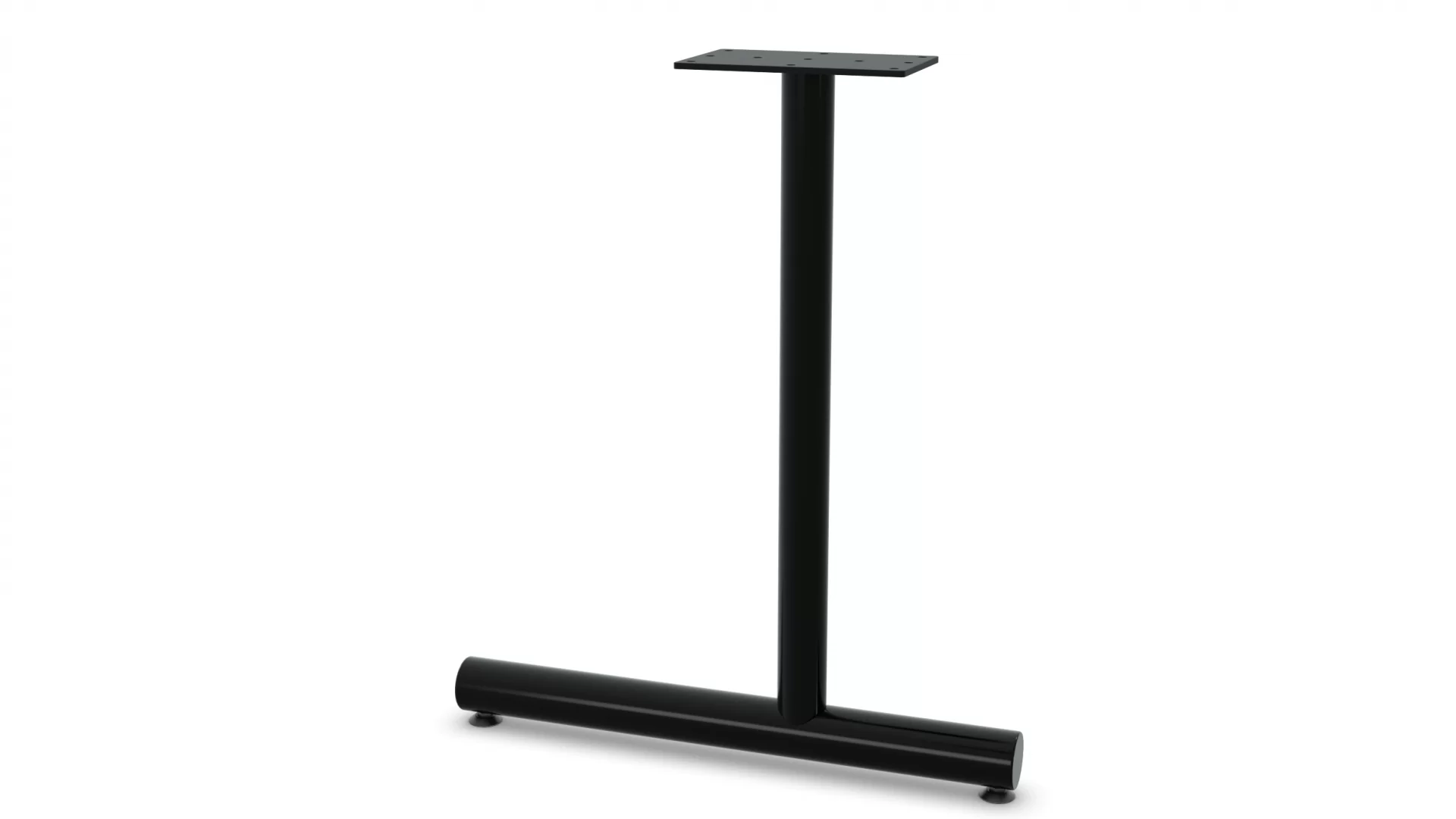

Single Column C-leg - Black Finish - Glides

Single Column C-leg

Traditional

Configure Bases

 Configure Tables

Price From:

$188 List

Fabricated 14 gauge steel with steel endcaps and threaded inserts for levelers or casters.

  • Unit height: 27.75"
  • Welded Mounting Plate: 5" x 8" x 7/32 steel; require 14 #12 screws
  • Column: 2" diameter
  • Base Spread: 16", 22", 26"
  • Leveling Glides: 1 3/8" diameter plastics with steel threaded inserts, allow additional 1" upward height adjustment for uneven floors
  • Finish: powder coat; black is stock color
  • Bolted construction
  • Packaging: 2 legs per box, priced individually
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Options Counter Height - 34.75’’, Bar Height - 40.75", Custom Height Cut less than 40.75"
Column Diameter 2"
Welded Mounting Plate 5" x 8" x 7/32 steel; requires 14 #12 screws
Base Spread 16", 22", 26"
Leveling Glides 1 3/8" diameter plastics with steel threaded inserts
Finish powder coat; black is stock color
Options Optional Casters; Optional Self Leveling Glides
Packaging 2 legs per box, priced individually

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
16"2"5" x 8"18"-22"D x 24"-96"W
22"2"5" x 8"24"-28"D x 36"-96"W
26"2"5" x 8"28"-30"D x 42"-96"W

.

Resources & Downloads

Assembling Instructions
Product Preview
Click & Drag Image (Left or Right)

Single Column C-Leg 360o View
