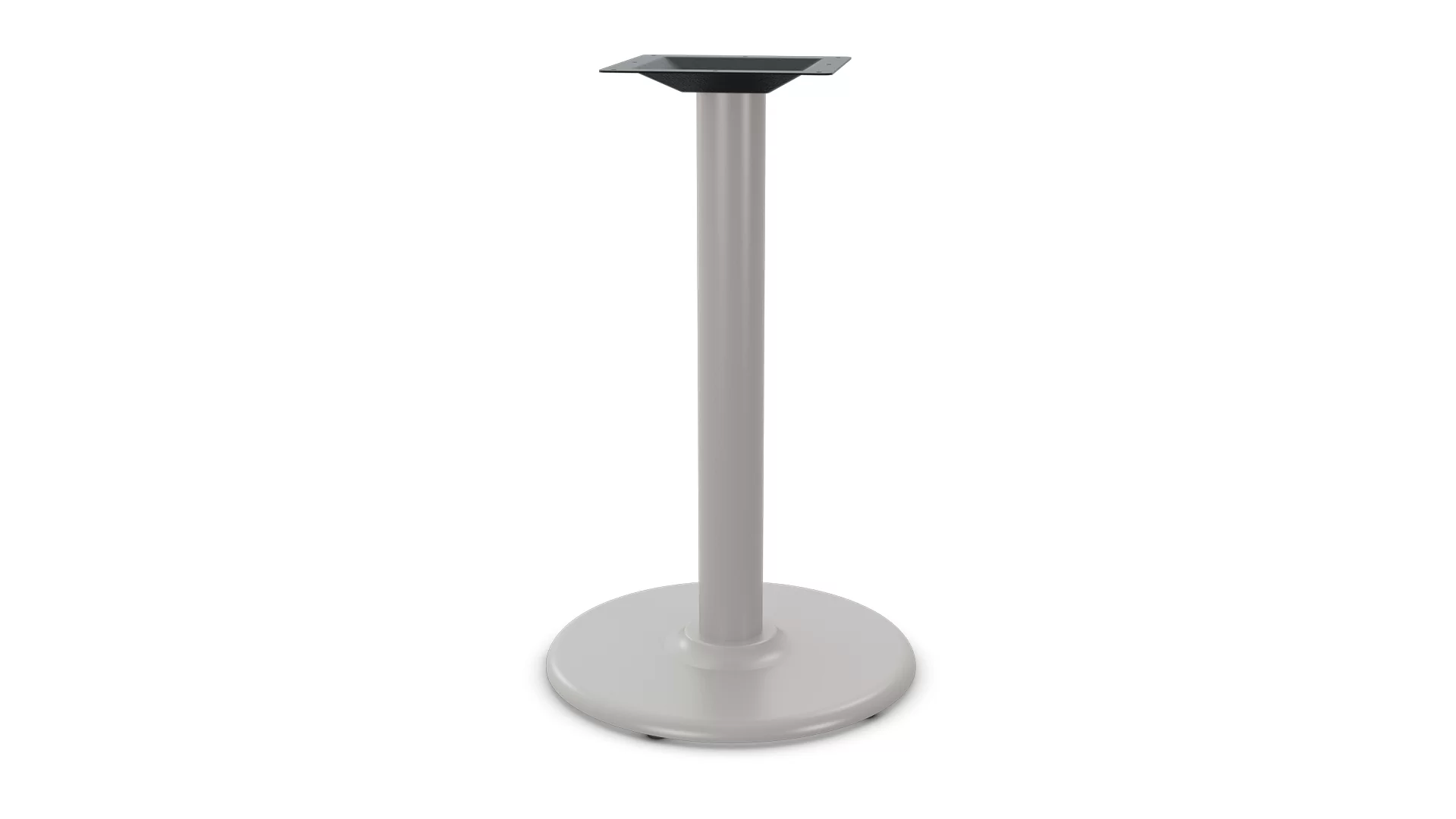

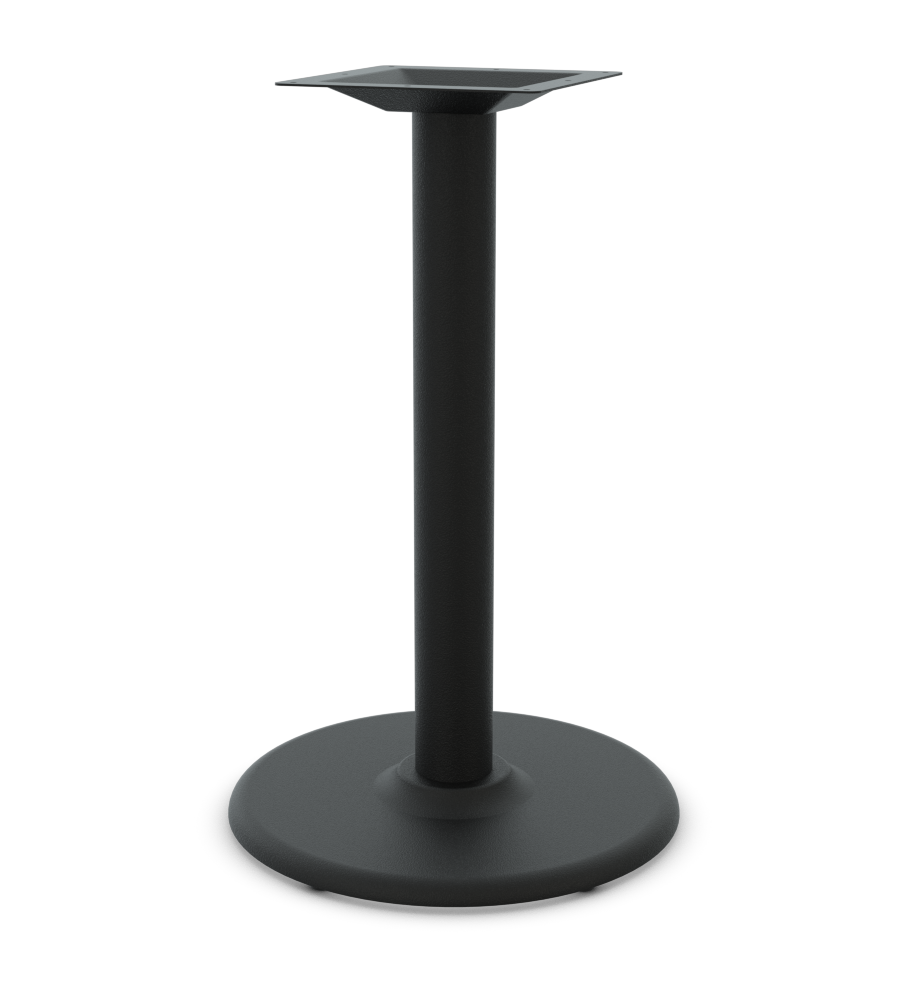

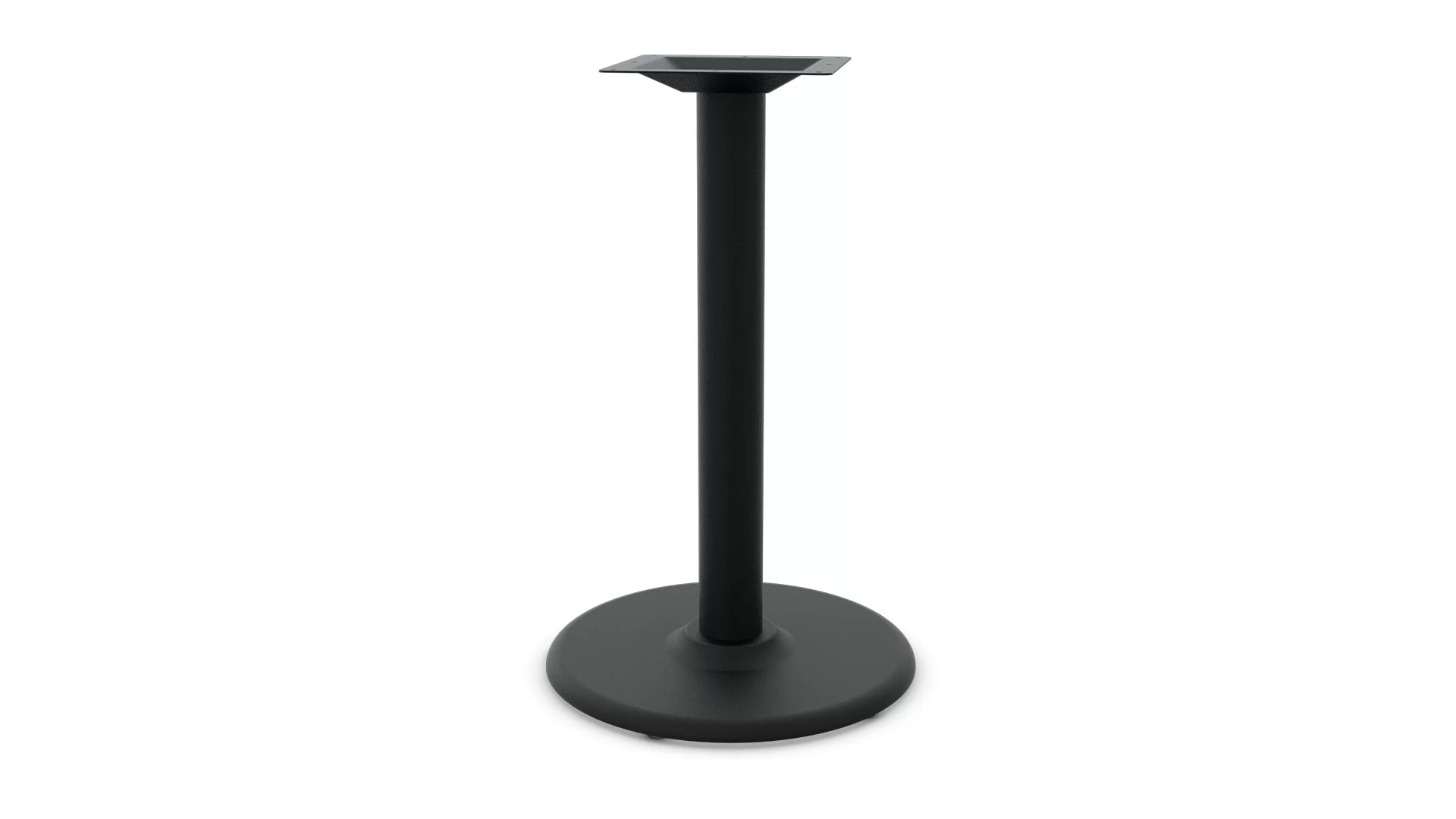

Cast Iron 2.0 - Round Base

Cast Iron

Configure Bases

 Configure Tables

Price From:

$189 List

This Cast Iron 2.0 Round base is perfect for commercial use such as restaurant, break room or cafeteria. The Cast Iron Round Base is composed of a column made from 11 gauge tubular steel.

  • Unit Height: 27.75"
  • Welded Mounting Plate: 11" x 11" x 5/32"
  • Column Diameter : 3" for 18" floor plate ; 4" for 24" and 30" floor plate
  • Floor Plate: 18", 24" and 30" diameter
  • Leveling Glides: 1-3/8" diameter nylon cap 1/2 20 stem
  • Method of Assembly: bolted construction
  • Finish: Black Wrinkle, Fog Gray



Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"

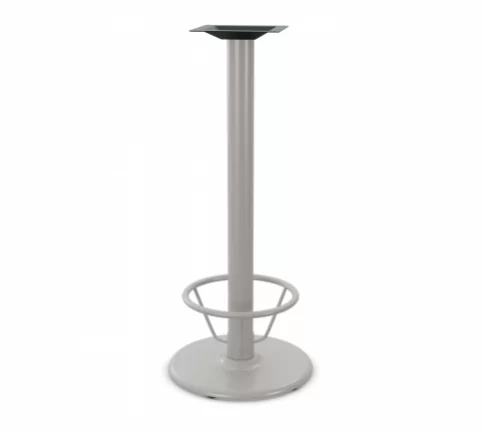

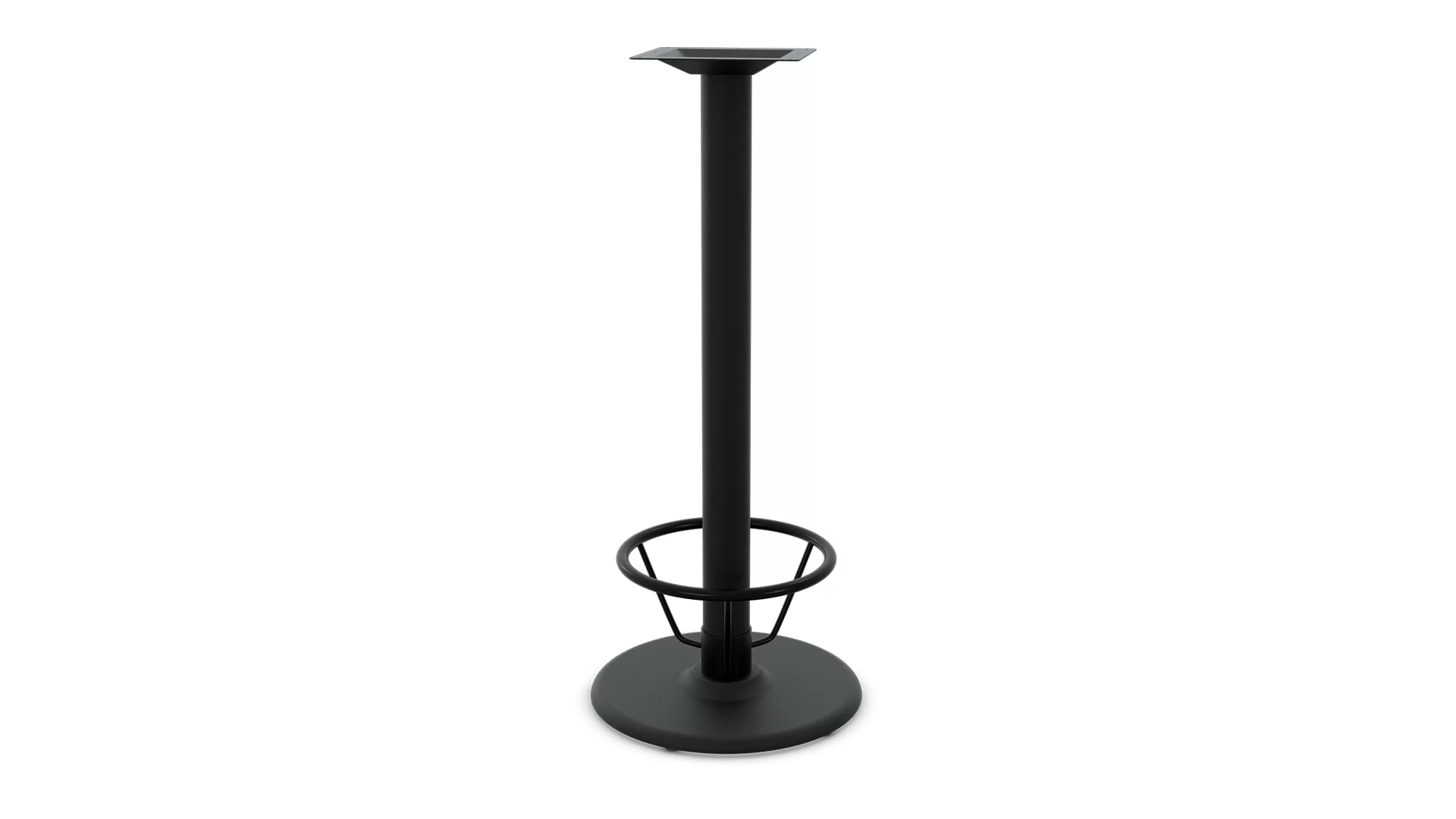

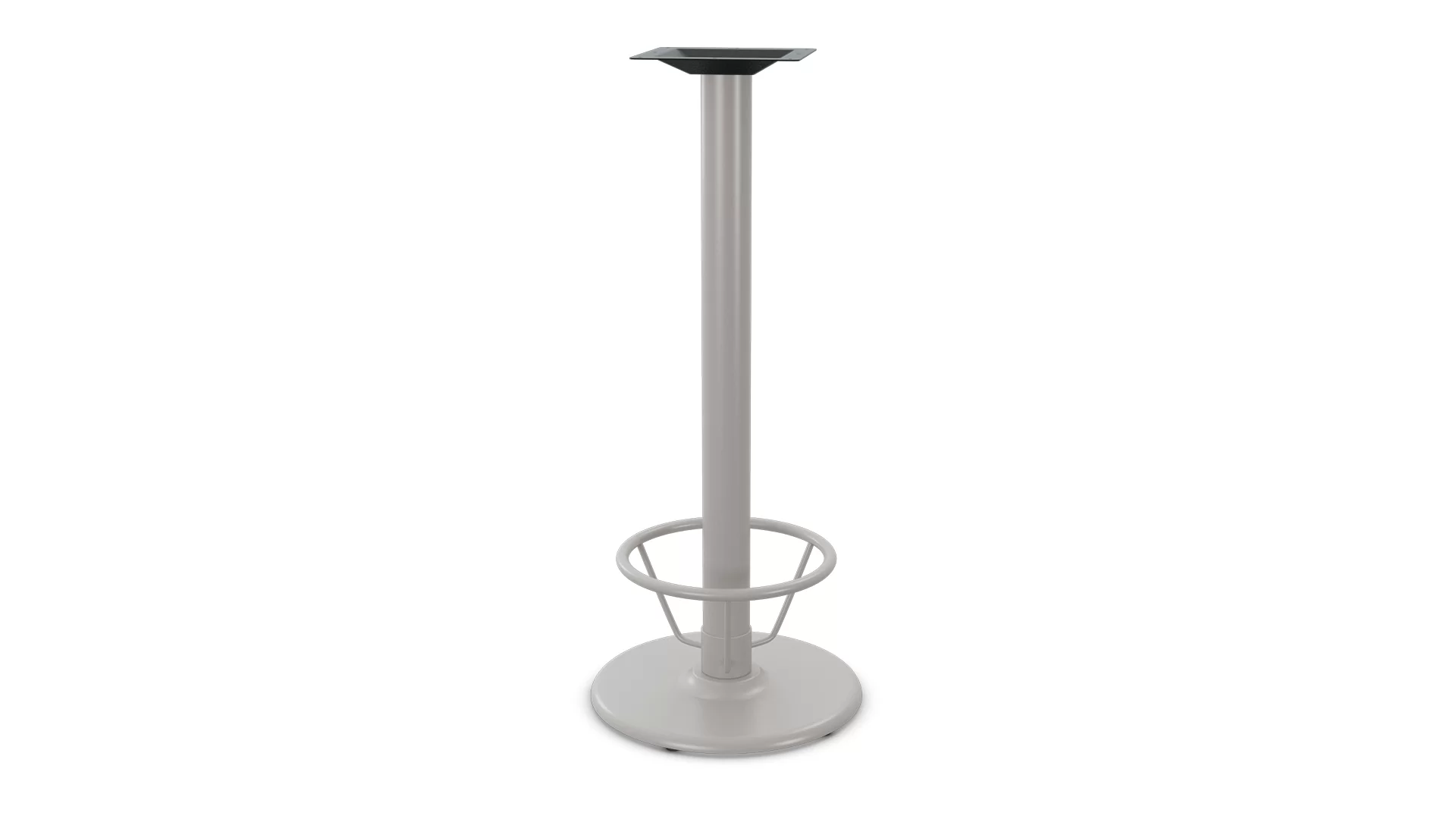

Height Options Bar Height - 40.75"
Column 3"dia.  for 18" floor plate ; 4"dia. for 24" and 30" floor plate
Welded Mounting Plate 11" x 11" x 5/32"
Floor Plate 18" dia., 24" dia., 30" dia.
Leveling Glides 1-3/8" diameter nylon cap 1/2 20 stem
Finish Black Wrinkle, Fog Gray
Method of Assembly bolted construction
Packaging Floor plate and column are packaged in 2 boxes
Maximum Load Rating 660 pounds (per base)

Size Chart

Floor PlateColumn DiameterMounting Plate Recommended Top Size
18"3"11" x 11"24" - 30" dia.
24"4"11" x 11"36" - 42" dia.
30"4"11" x 11"48" - 54" dia.

.

Resources & Downloads

Cast Iron 2.0 Brochure
Assembly Instructions
