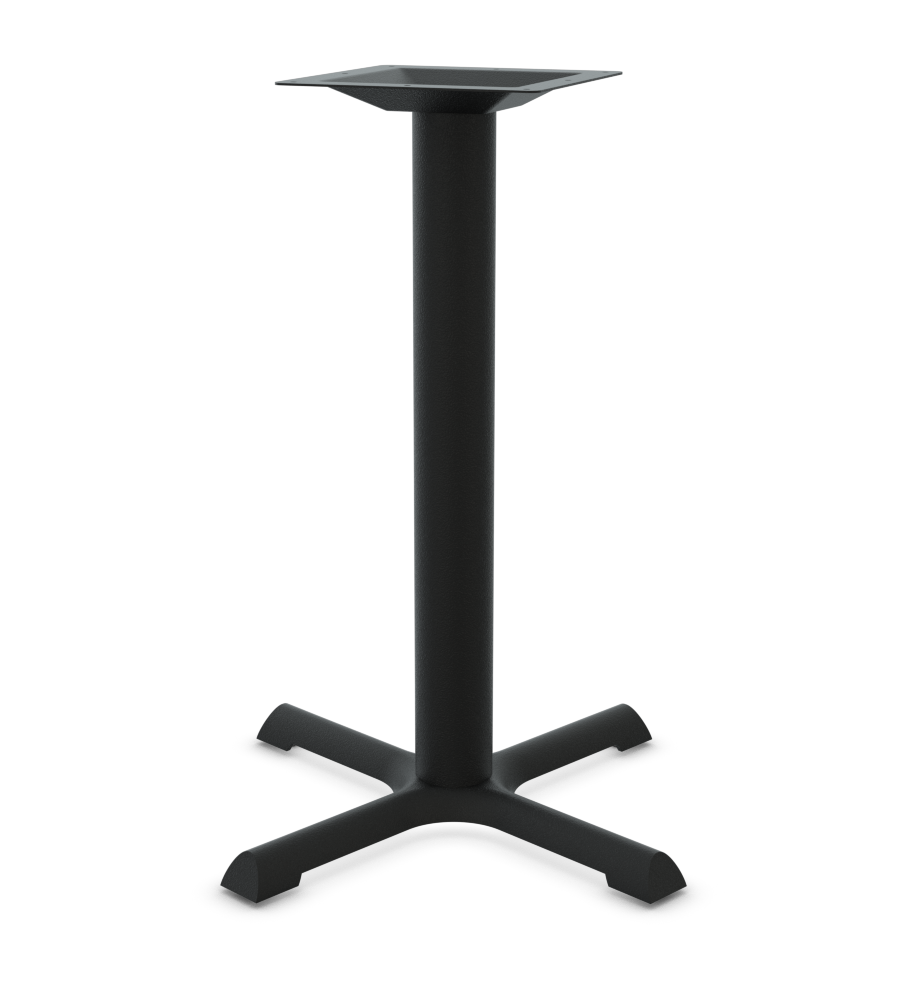

Cast Iron 2.0 - X-Base

Cast Iron 2.0

Configure Bases

 Configure Tables

Price From:

$151 List

This Cast Iron 2.0 X Base is perfect for commercial use such as restaurant, break room or cafeteria. The Cast Iron X Base is fabricated from 11 gauge tubular steel column and a heavy duty cast iron cross-shaped floor base.

  • Unit Height 27.75"
  • Welded Mounting Plate: 11" x 11" x 5/32"
  • Column: 3" dia.
  • Base Spread: 22" x 22", 22" x 30", 30" x 30", 33" x 33"
  • Leveling Glides: 1-1/8" diameter plastic for leveling on uneven floors
  • Method of Assembly: bolted construction

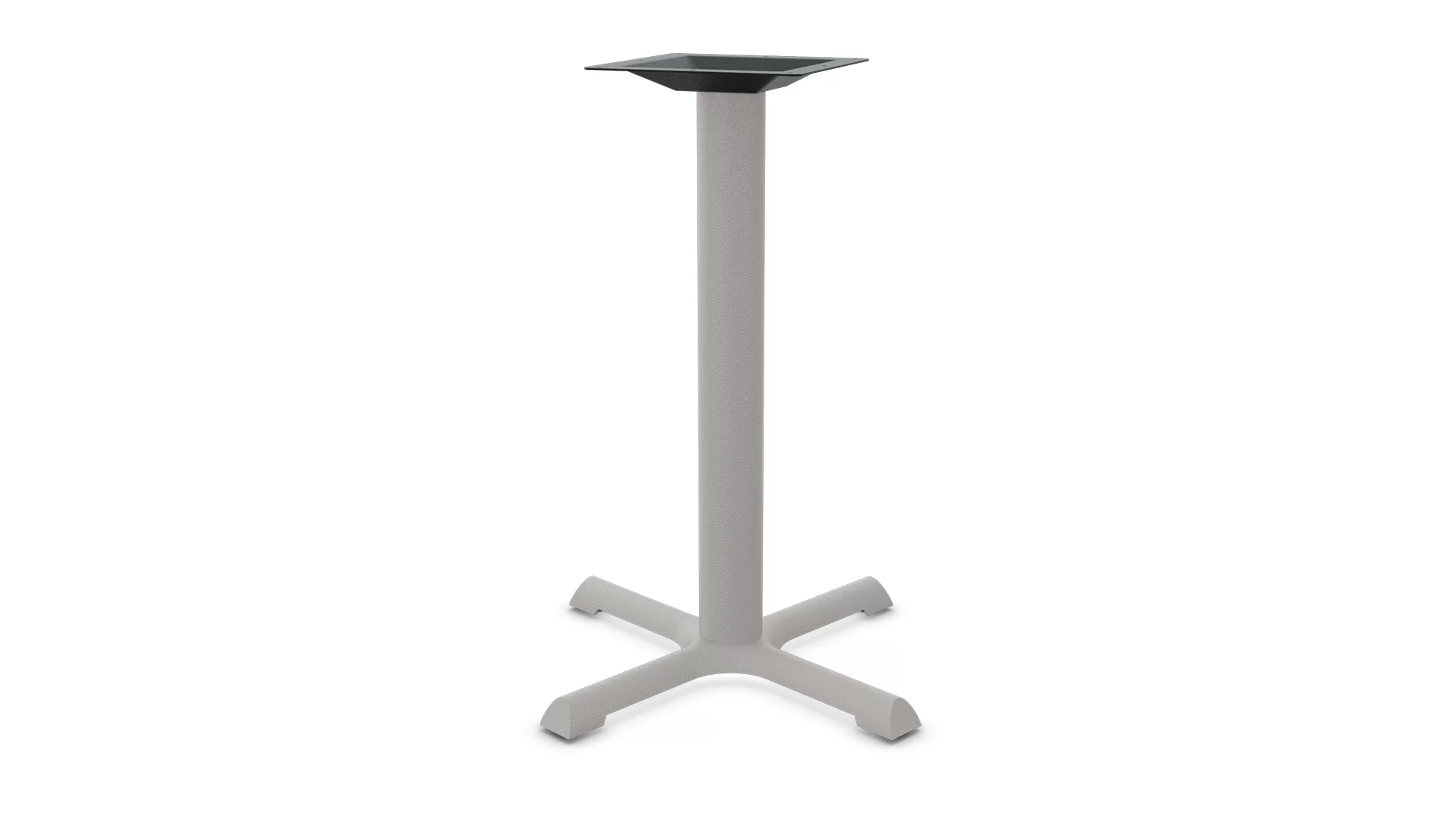

  • Finish: Black Wrinkle, Fog Gray
  • 660 lbs (300kg) static maximum load
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"

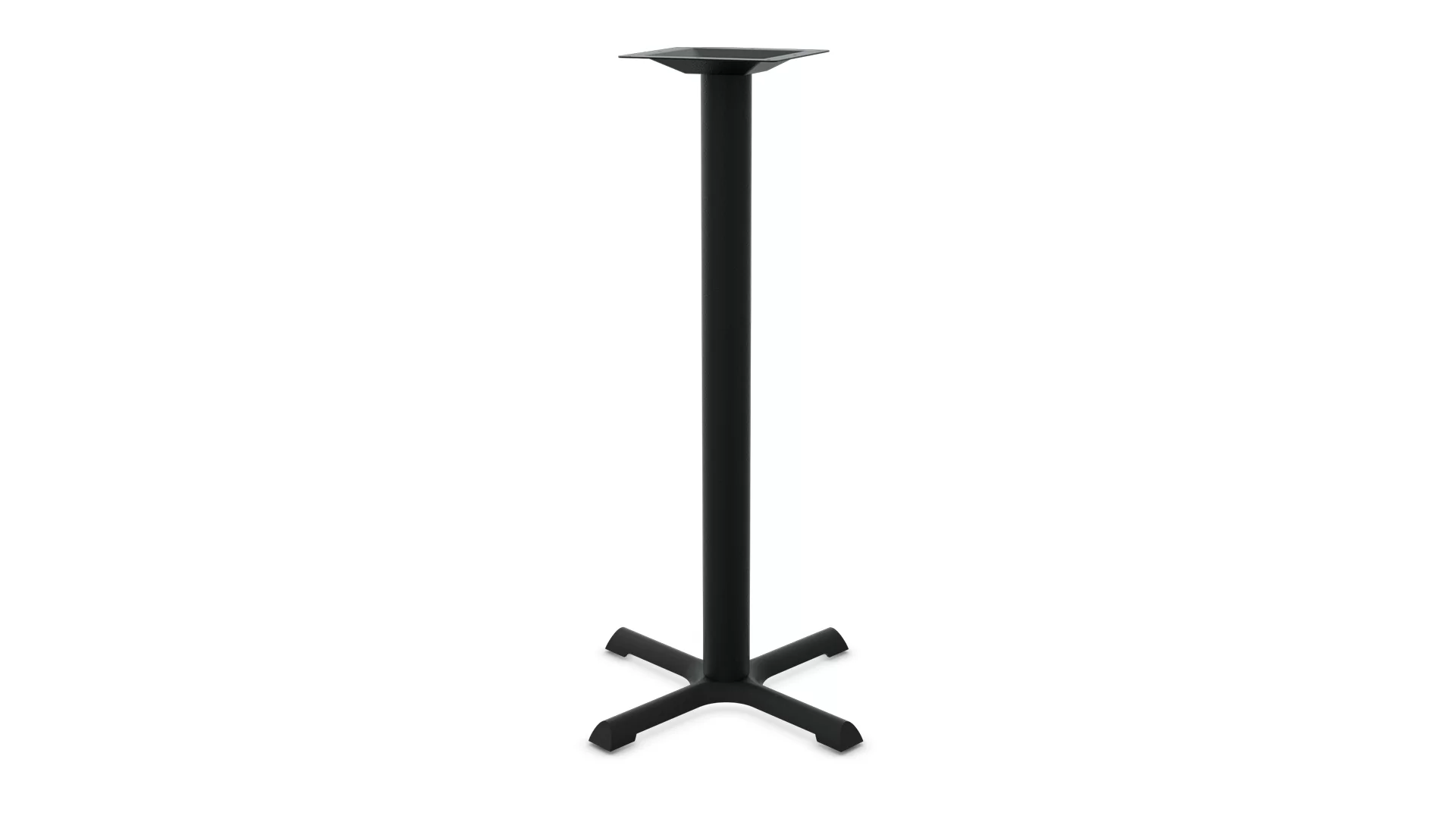

Height Option Bar Height - 40.75"
Column Diameter 3" dia.
Welded Mounting Plate 9.5" x 9.5" 2.5 mm powder coated pressed milled steel
Base Spread 22" x 22", 22" x 30", 30" x 30", 33" x 33"
Leveling Glides 1-1/8" diameter plastic for leveling on uneven floors
Finish Black Sandtex
Method of Assembly Bolted Construction
Packaging Floor plate and column are packaged in 2 boxes
Maximum Load Rating 660 pounds (per base)

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
22" x 22"3"11" x 11"24" - 30" dia.
22" x 30"3"11" x 11"24" - 36" dia.
30" x 30"3"11" x 11"36” - 42” dia.

.

Resources & Downloads

Cast Iron 2.0 Brochure
Assembly Instructions
